XY900-DR Explosion-proof HMI

XY900_DR is an explosion-proof panel with 32-bit 800MHz RISC CPU and a LlNUX kernel.lt supports most PLCs in industrial control systems.Excellent processing speed and rich software functions can meet requirements of users and widely be used in petroleum,chemical,pharmaceutical and other industries in hazardous environments.

Product Inquiry

Category:

XY900DR Series

Explosion-proof Wireless Access Point

Keyword： XY900-DR Explosion-proof HMI

Advantage

Full metal explosion-proof housing, certification passed for whole device
Explosion-proof designed touch screen, ESD protected, can be operated directly in explosive area Corrosion resistant touch panel to meet harsh environmental requirements
Internal wiring without any electrical exposure
Can be equipped with external explosion-proof USB sleeve, external USB data access
Explosion-proof light, Explosion-proof power switch, Reset button, Emergency stop button, USB interface
Industrial-grade design standard, highly reliability and stability.
Operating environment temperature: -40°C~+60°C

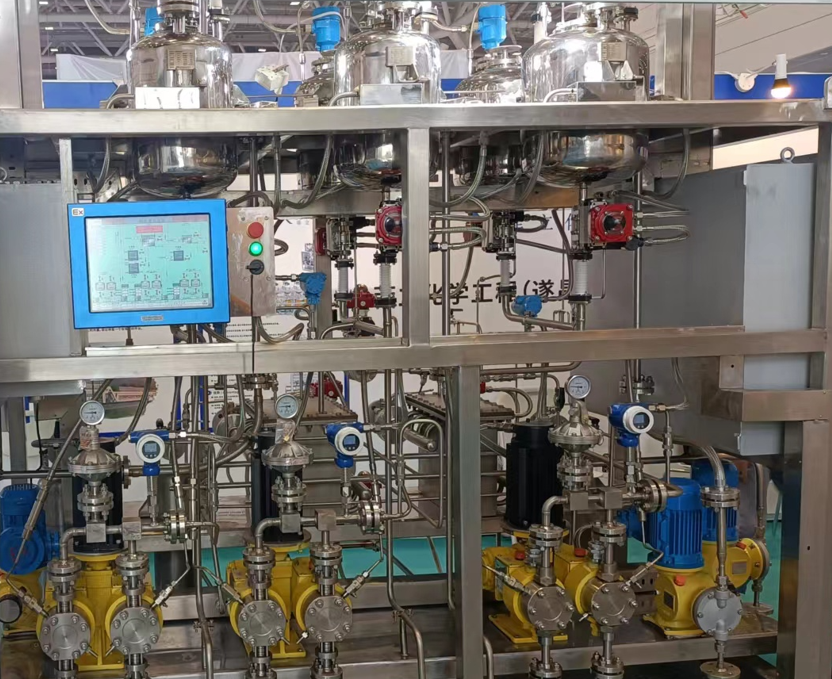

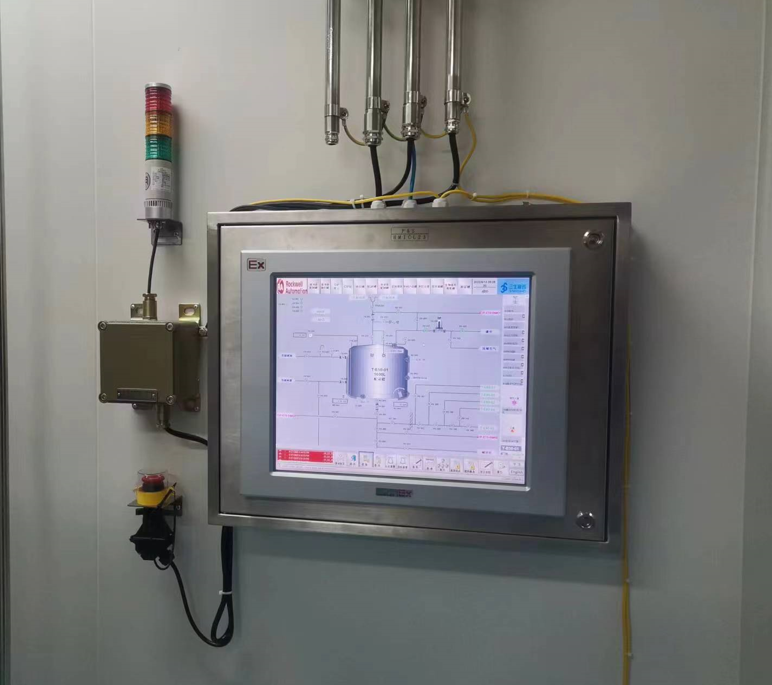

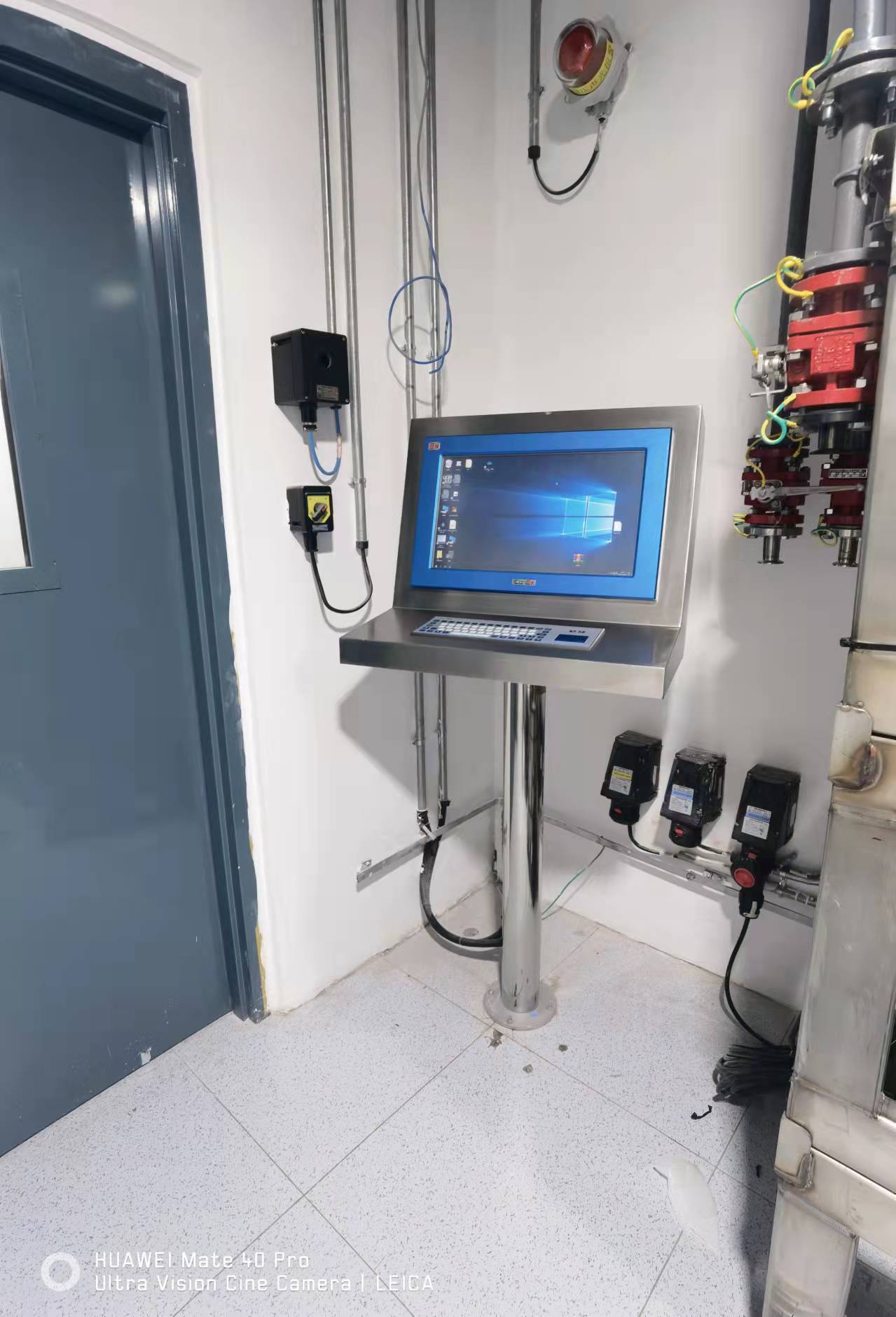

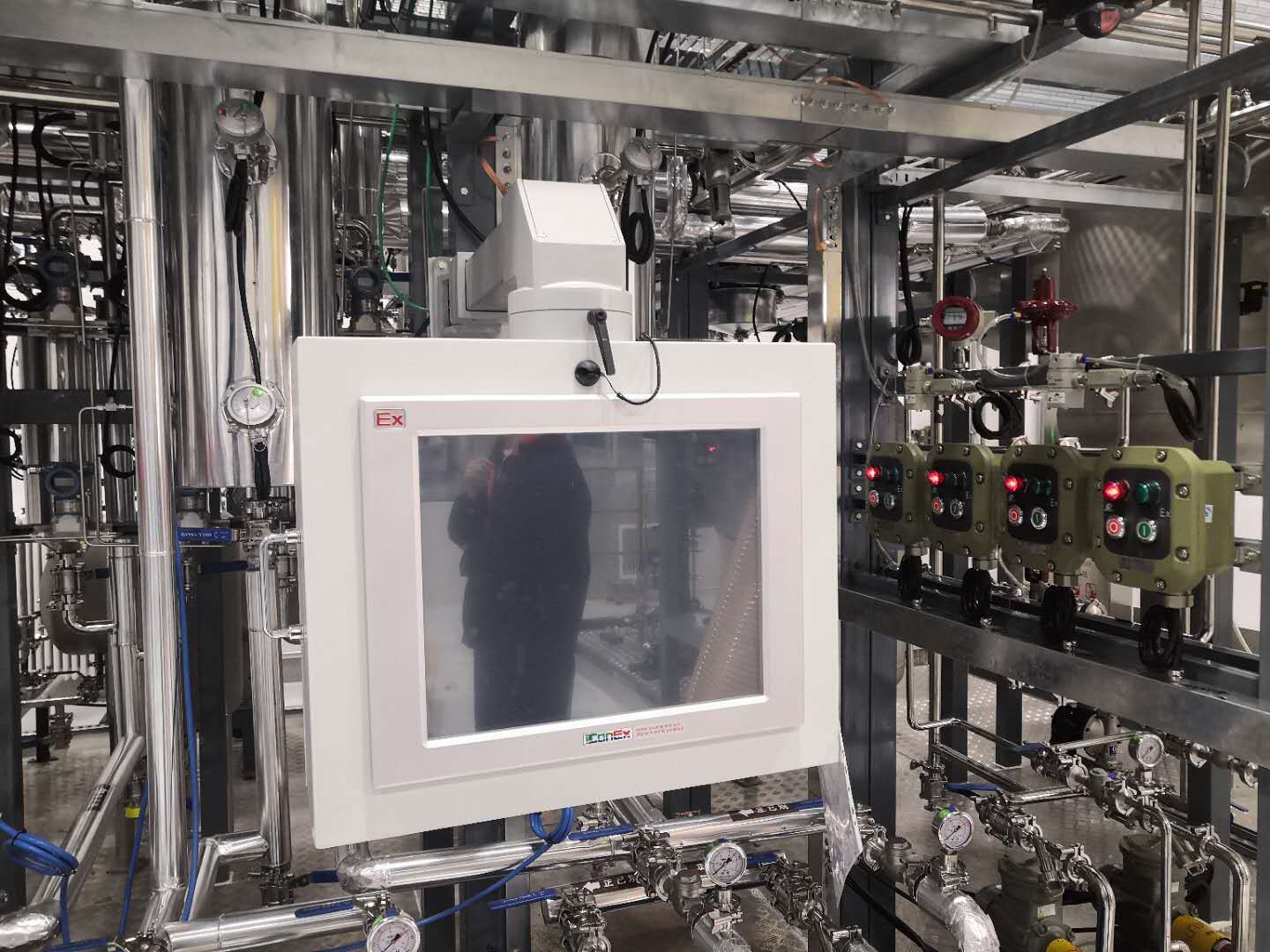

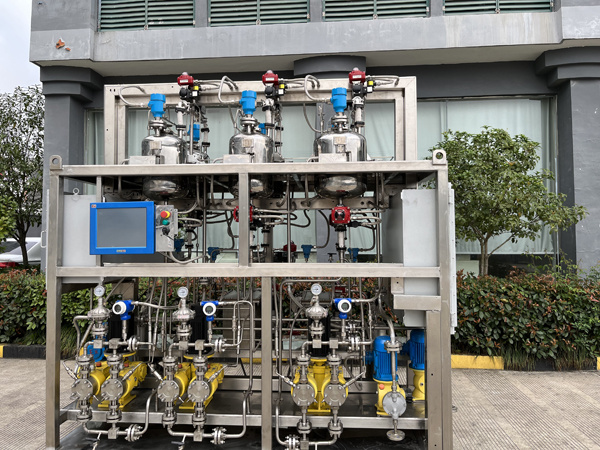

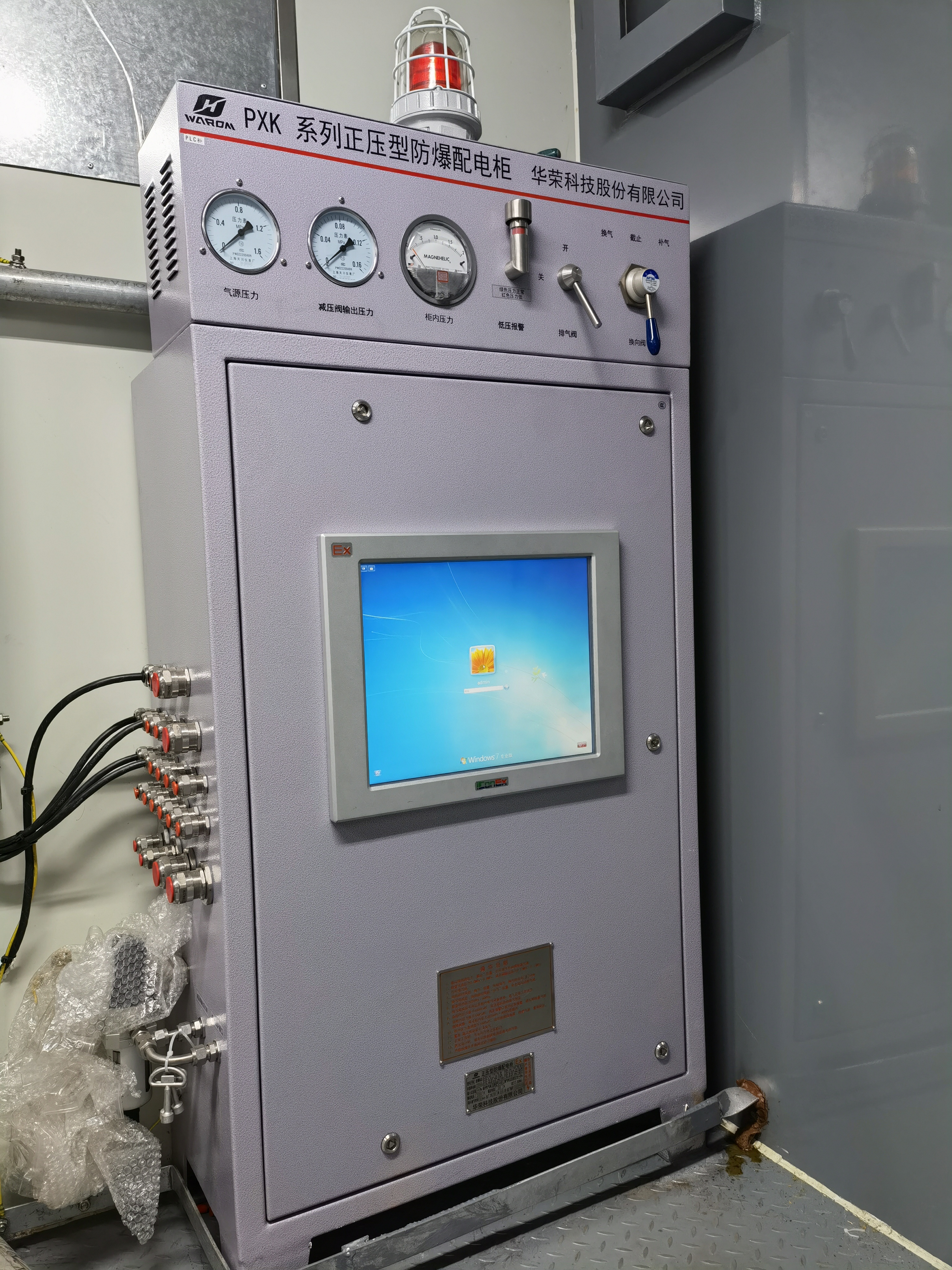

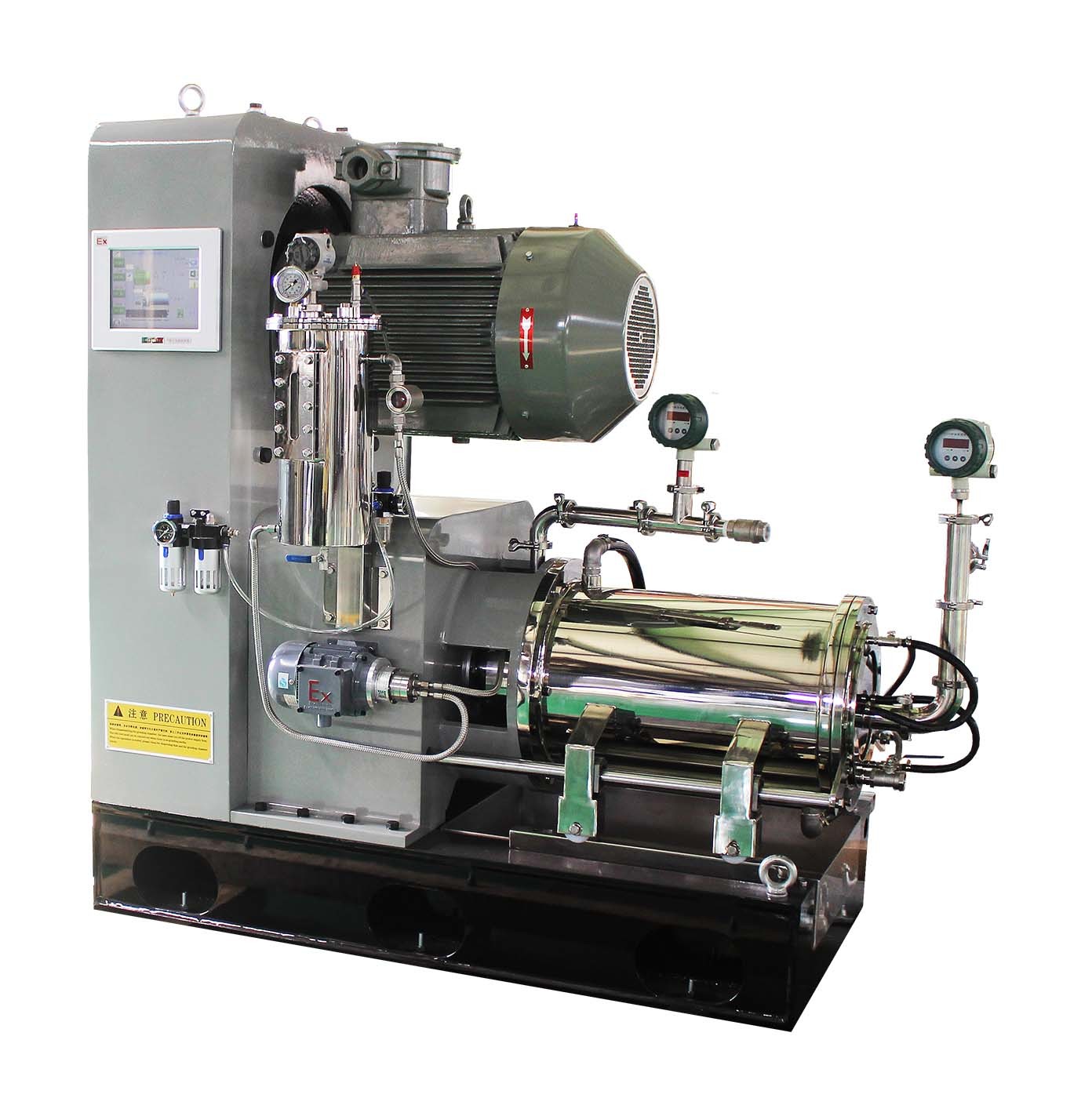

Explosion-proof design, suitable for use in explosive gas environment Zone 1,2, and explosive dust environment Zone 21, 22

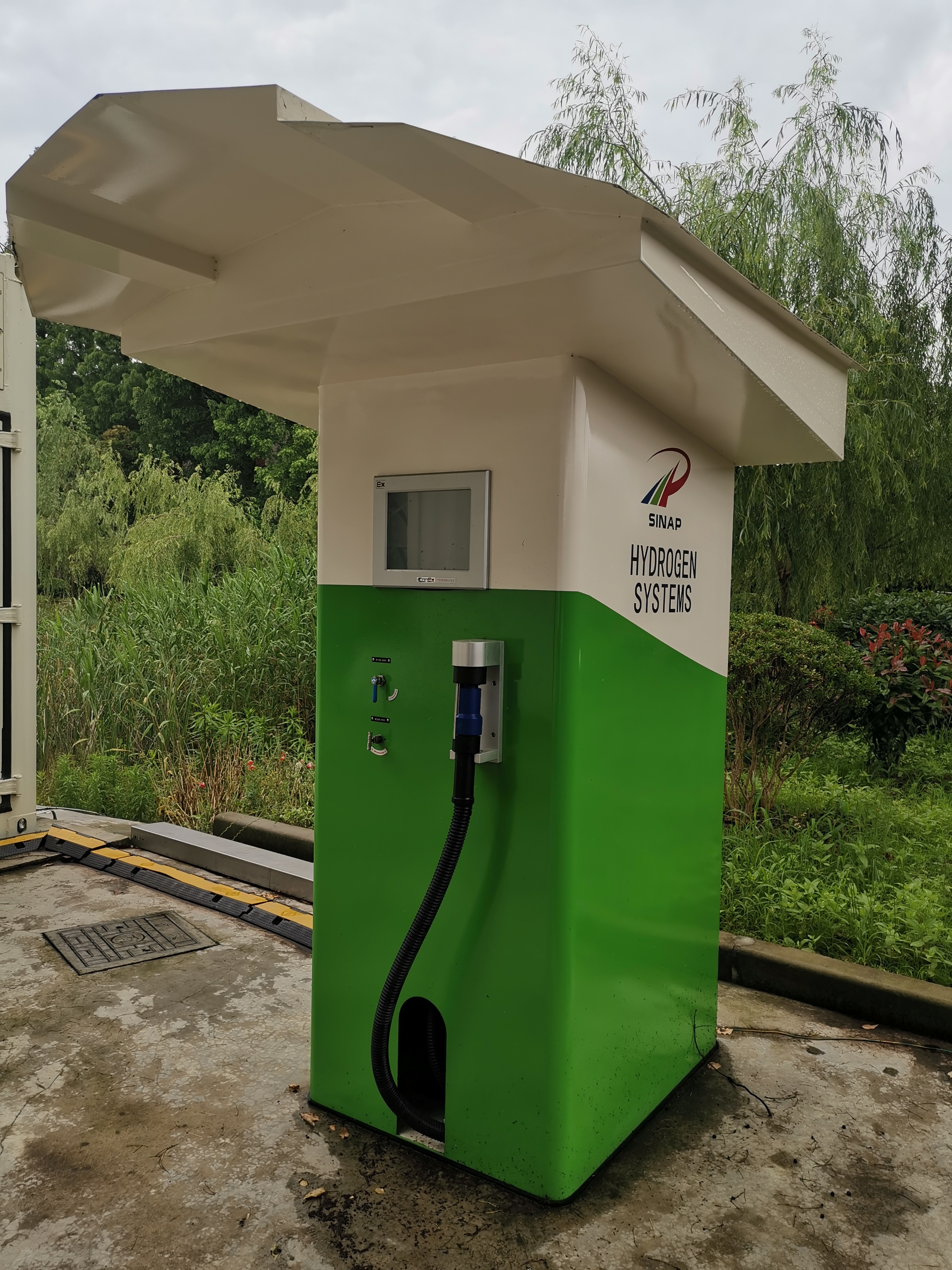

Suitable for use in hydrogen environment

Parameter

XY900_7DR
XY900_10DR
XY900_12DR
XY900_15DR

Model	XY900_7DR
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	7"
Resolution	800*480
Screen color	16.77M color
Brightness	300 cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	256M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1* 10M/100Mt ethernet RJ45 port
Communication Interface	1*RS232/RS485/RS422
USB	1* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40~55°C
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	4W Max 8W
Electrical Interface	4* M20 explosion-proof sealing joint
Protection level	IP66
Expbsion-proof mark	CNEX Ex nR IIC T6 Gc; Ex tb IIIC T80℃ Db IECEX EX nR IIC T6 Gc；Ex tb IIIC T80℃ Db ATEX II 2D Ex tb IIIC T80℃ Db Ta=-40℃ to +60℃ ATEX II3G Ex nR IIC T6 Gc EAC 2EX ib IIB T4 Gb, Ex ib IIIB T130℃ Db

Model	XY900_10DR
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	10.4"
Resolution	800*600
Screen color	16.77M color
Brightness	300 cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	256M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1* 10M/100Mt ethernet RJ45 port
Communication Interface	1*RS232/RS485/RS422
USB	2* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40~55°C
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	8W Max 10W
Electrical Interface	3* M20 explosion-proof sealing joint
Protection level	IP66
Expbsion-proof mark	CNEX Ex nR IIC T6 Gc; Ex tb IIIC T80℃ Db IECEX EX nR IIC T6 Gc；Ex tb IIIC T80℃ Db ATEX II 2D Ex tb IIIC T80℃ Db Ta=-40℃ to +60℃ ATEX II3G Ex nR IIC T6 Gc EAC 2EX ib IIB T4 Gb, Ex ib IIIB T130℃ Db

Model	XY900_12DR
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	12"
Resolution	800*600
Screen color	16.77M color
Brightness	450 cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	128M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1*10M/100M ethernet RJ45 port
Communication Interface	2*RS232/RS485/RS422
USB	3* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40~55°C
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	10W Max 12W
Electrical Interface	4* M20 explosion-proof sealing joint
Protection level	IP66
Expbsion-proof mark	CNEX Ex nR IIC T6 Gc; Ex tb IIIC T80℃ Db IECEX EX nR IIC T6 Gc；Ex tb IIIC T80℃ Db ATEX II 2D Ex tb IIIC T80℃ Db Ta=-40℃ to +60℃ ATEX II3G Ex nR IIC T6 Gc EAC 2EX ib IIB T4 Gb, Ex ib IIIB T130℃ Db

Model	XY900_15DR
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	15"
Resolution	1024*768
Screen color	16.77M color
Brightness	420cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	256M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1*10M/100M ethernet RJ45 port
Communication Interface	2*RS232/RS485/RS422
USB	4* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40~55°C
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	13W Max 15W
Electrical Interface	4* M20 explosion-proof sealing joint
Protection level	IP66
Expbsion-proof mark	CNEX Ex nR IIC T6 Gc; Ex tb IIIC T80℃ Db IECEX EX nR IIC T6 Gc；Ex tb IIIC T80℃ Db ATEX II 2D Ex tb IIIC T80℃ Db Ta=-40℃ to +60℃ ATEX II3G Ex nR IIC T6 Gc EAC 2EX ib IIB T4 Gb, Ex ib IIIB T130℃ Db
