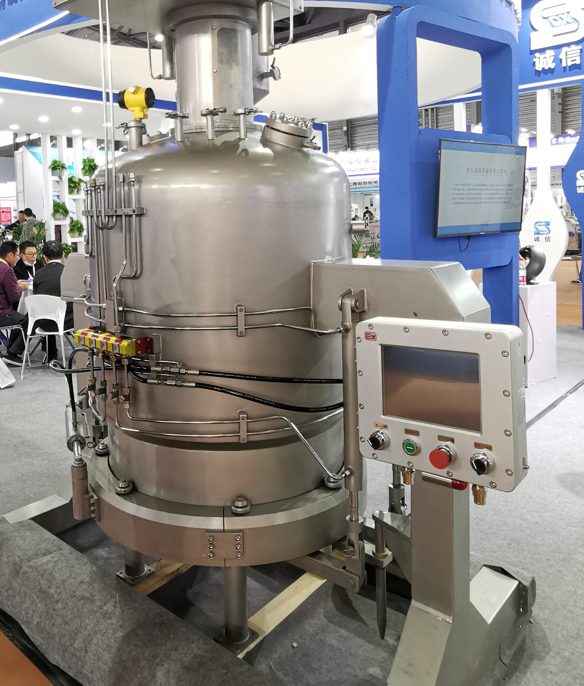

XY800_D Explosion-proof HMI

Suitable for Gas Zone 1, Dust Zone 21. XY800_D HMI is explosion-proof panels equipped with a 32-bit 800MHz RISC CPU and a Linux kernel. They support most PLCs in industrial control systems. With excellent processing speed and comprehensive software functions, these panels can meet the requirements of users and are widely used in petroleum, chemical, pharmaceutical, and other industries operating in hazardous environments.

Product Inquiry

Category:

XY800 Series

XY800-D Series

Product

Keyword： XY800_D Explosion-proof HMI

Advantage

Full metal explosion-proof housing, certification passed for whole device
Explosion-proof designed touch screen, ESD protected, can be operated directly in explosive area Corrosion resistant touch panel to meet harsh environmental requirements
Internal wiring without any electrical exposure
Can be equipped with external explosion-proof USB sleeve, external USB data access
Explosion-proof light, Explosion-proof power switch, Reset button, Emergency stop button, USB interface
Industrial-grade design standard, highly reliability and stability.
Operating environment temperature: -40°C~+60°C
Explosion-proof design, suitable for use in explosive gas environment Zone 1,2, and explosive dust environment Zone 21, 22
Suitable for use in hydrogen environment

Parameter

XY800_7D
XY800_10D
XY800_12D
XY800_10D

Model	XY800_7D
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	7"
Resolution	800*480
Screen color	16.77Mcolor
Brightness	300 cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	128M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1* 10M/100Mt ethernet RJ45 port
Communication Interface	1*RS232/RS485/RS422
USB	1* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40 ~ 60℃
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	4W Max 8W
Electrical Interface	3* M20 explosion-proof sealing joint
Button/lndicator	Max 3 (onlyXY800_D)
Protection level	IP66
Expbsion-proof mark	XY800_D: Ex db ib llB T6 Gb; Ex ib tb IIIC T80°C Db

Model	XY800_10D
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	10.4"
Resolution	800*600
Screen color	16.77Mcolor
Brightness	300 cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	128M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1* 10M/100Mt ethernet RJ45 port
Communication Interface	1*RS232/RS485/RS422
USB	1* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40 ~ 60℃
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	8W Max 10W
Electrical Interface	3* M20 explosion-proof sealing joint
Button/lndicator	Max 3 (onlyXY800_D)
Protection level	IP66
Expbsion-proof mark	XY800_D: Ex db ib llB T6 Gb; Ex ib tb IIIC T80°C Db

Model	XY800_12D
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	12"
Resolution	800*600
Screen color	16.77Mcolor
Brightness	450 cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	128M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1*10M/100M ethernet RJ45 port
Communication Interface	2*RS232/RS485/RS422
USB	1* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40 ~ 60℃
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	10W Max 12W
Electrical Interface	4* M20 explosion-proof sealing joint
Button/lndicator	Max 4 (only XY800_D)
Protection level	IP66
Expbsion-proof mark	XY800_D: Ex db ib llB T6 Gb; Ex ib tb IIIC T80°C Db

Model	XY800_10D
Type	HMI (Human-Machine Interface)
Screen type	TFT_LCD/LED Back light
Screen size	15"
Resolution	1024*768
Screen color	16.77Mcolor
Brightness	420cd/m2
Backlight	50000 hours
Operation	touch panel
CPU	ARM RISC 32Bit 800MHz
Memory	128M NAND Flash , 128M DDR3 DRAM
Expansion storage	1 USB Host(≤16G)
Communication Interface	1*10M/100M ethernet RJ45 port
Communication Interface	2*RS232/RS485/RS422
USB	1* USB Host: upload/download programs and store data
USB	1* USB Slave: upload/download program and set HMI system parameters
Configuration software	XYFD2000
Program download	supports local download via U-disk/download from USB port/network port
Operating temperature	NT： 0-50℃ / LT： -20~60℃ / WT: -40 ~ 60℃
Sstorage temperature	-10~60°C/-40~70°C
Environment humidity	10 ~ 90 % RH (no condensation)
Voltage level	24VDC, workable range 21 ~ 28V DC
Rated power	13W Max 15W
Electrical Interface	4* M20 explosion-proof sealing joint
Button/lndicator	Max 4 (only XY800_D)
Protection level	IP66
Expbsion-proof mark	XY800_D: Ex db ib llB T6 Gb; Ex ib tb IIIC T80°C Db
