Shenzhen Xuyong Industry Co., Ltd. Founded in 1996, it is a national high-tech enterprise, the source factory of explosion-proof intelligent control equipment, and the leading brand of explosion-proof HMI in China!

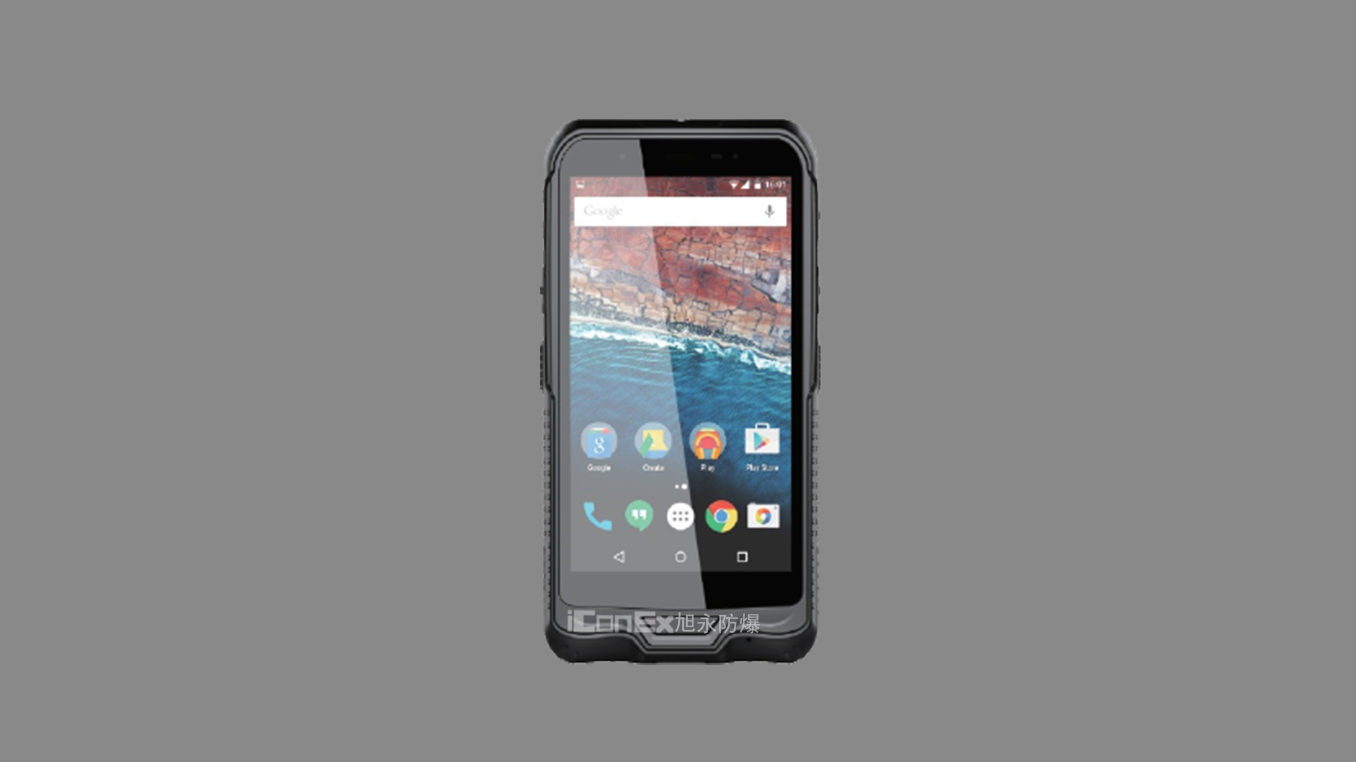

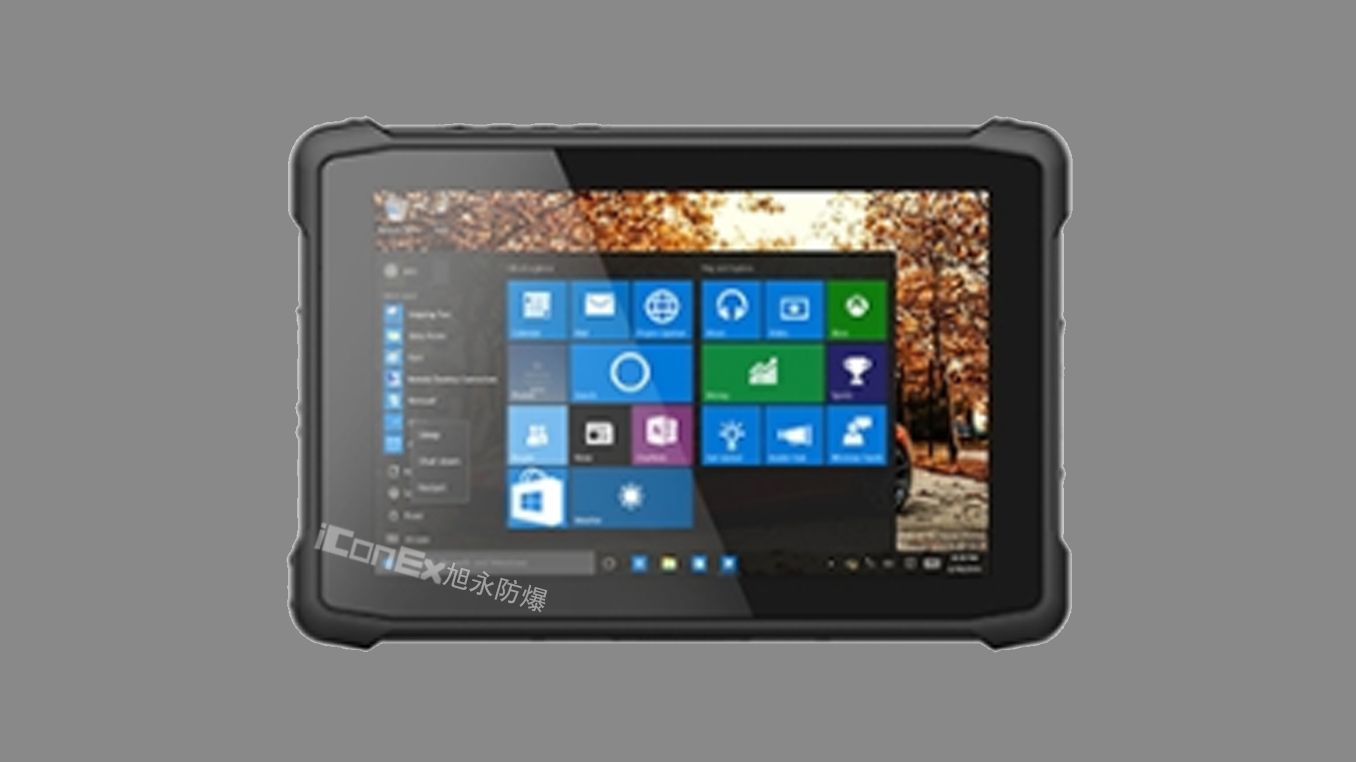

XYExPAD mobile terminal
XYExPAD mobile terminal
Full-Unit explosion-proof certification,for Zone 1, 21.
Runs Android and Windows 10 for fast, stable, and intuitive operation.
Integrated 4G (full-network), Wi-Fi, Bluetooth, and cellular/video call capabilities.
Long-Lasting battery,excellent adaptation.
IP65/IP66 industrial-grade protection against dust, water, and impacts.
Optional 1D/2D barcode, NFC, and fingerprint modules for cross-industry applications.
Technical parameters
Model | XYExPAD_6A | XYExPAD_6W | XYExPAD_10A | XYExPAD_10W |
Screen size | 6“IPS | 10“IPS | ||
Display ratio | 16:09 | 16:10 | ||
Resolution | 720*1280 | 1200*1920 | ||
Brightness | 300nit | 400nit | ||
Touch screen | 5-point capacitive screen, hardness above 7H, scratch-resistant | 10-point capacitive screen, hardness above 7H, scratch-resistant | ||
CPU | MediaTek Dimensity700（8core）2.0GHz | Intel trail Z83501.92GHz | MSM8953（8core）2.0GHz | Intel core m3-6Y30/7Y30/8Y30 |
Memory bar | 4GB/LPDDR3 | |||
Storage | 64GB | |||
Camera | Front 500W | Front 200W | Front 500W | Front 200W |
Back 1300W | Back 500W | Back 1300W | Back 800W | |
Network connection | WIFI/Bluetooth/4G/5G | |||
IC card | NFC | NFC(optional) | NFC | NFC(optional) |
Fingerprint recognition | no | optional | ||
Barcode recognition | 1D&2D(optional) | |||
Operating system | Andriod 12 | Win10 IOT/Pro 32/64 bit | Andriod 9.0 | Win10 IOT/Pro 32/64 bit |
Protection level | IP66 | IP65 | ||
Explosion-proof mark | Ex ib IIB T4 Gb; Ex ibD 21 IP66 T130°C | Ex ib IIB T4 Gb; Ex ibD 21 IP65 T130°C | ||
