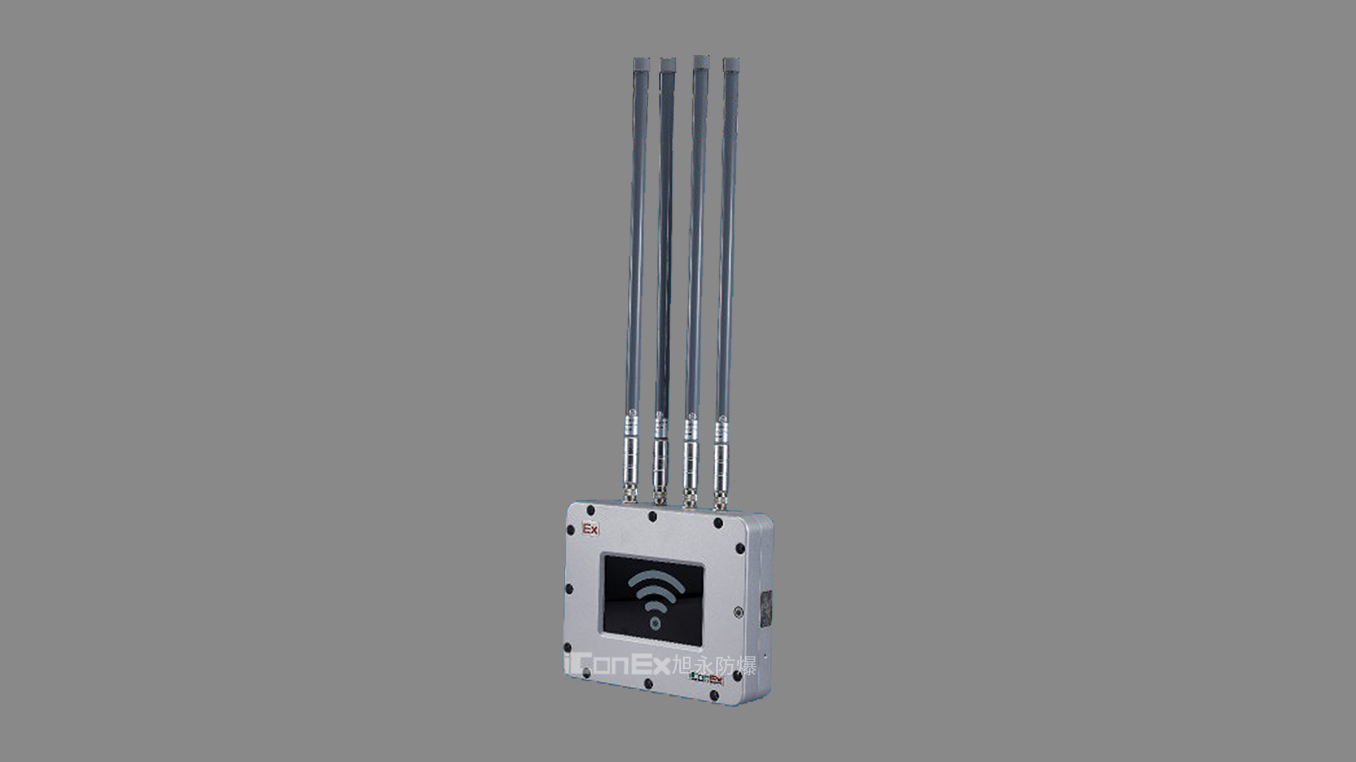

XYExAP Explosion-proof wireless base station
XYExAP Explosion-proof wireless base station
Explosion-proof design for zone 1, 21 environment.
Supports Fat (thick) and Fit (thin) two modes.
2.4GHz & 5.8GHz bands, 1300Mbps speed (5GHz prioritized).
Built-in hardware watchdog,automatic recovery.
SSID-based access control,flexible network resource allocation.
Support seamless roaming,can achieve zero handover, no packet loss.
Support WEP/WPA/WPA2 authentication function.
AC controller integration for user/flow monitoring.
Support POE power supply.
Industrial-grade design: power and port isolation protection.
Technical parameters
Model | XYExLRRFID_2M | XYExLRRFID_5M | XYExLRRFID_10M | ||
Reading distance | 0～2m | 0～5m | 0～10m | ||
Antenna gain | 6～10 dBi circular polarization | ||||
Reading and writing area | Directional identification | ||||
Operating frequency | 840～928MHz | ||||
H-plane lobe angle | 70° | ||||
V-plane lobe angle | 70° | ||||
Operating mode | Fixed frequency or frequency hopping mode | ||||
Air interface protocol | ISO18000-6C(EPC C1 Gen2), IS018000-6B | ||||
Transmit power | 0~33dBm (support software adjustment) | ||||
Communication interface | RS232/RS485/RJ45 | ||||
Communication protocol | ASCII（optional Modbus RTU/TCP/PROFINET/EtherNet/IP） | ||||
I/O interface | 2*relay outputs; 3*I/0 inputs | ||||
Development kit | Provide DEMO debugging software, SDK and C#, Java, Android | ||||
Electronic label | Hanging card, white card, ceramic, anti-metal, self-adhesive, cable tie, wrist strap | ||||
Operating voltage | DC12V/24V | ||||
Ambient temperature | -40℃～60℃ | ||||
Storage temperature | -40℃～70℃ | ||||
Ambient humidity | 5%～95%RH (no condensation) | ||||
Electrical interface | 2*M20x1.5 | 3*M20x1.5 | 4*M20x1.5 | ||
Protection level | IP66 | ||||
Explosion-proof mark | Ex d IIB+H2 T6 Gb; Ex tD A21 IP66 T80℃ | ||||
