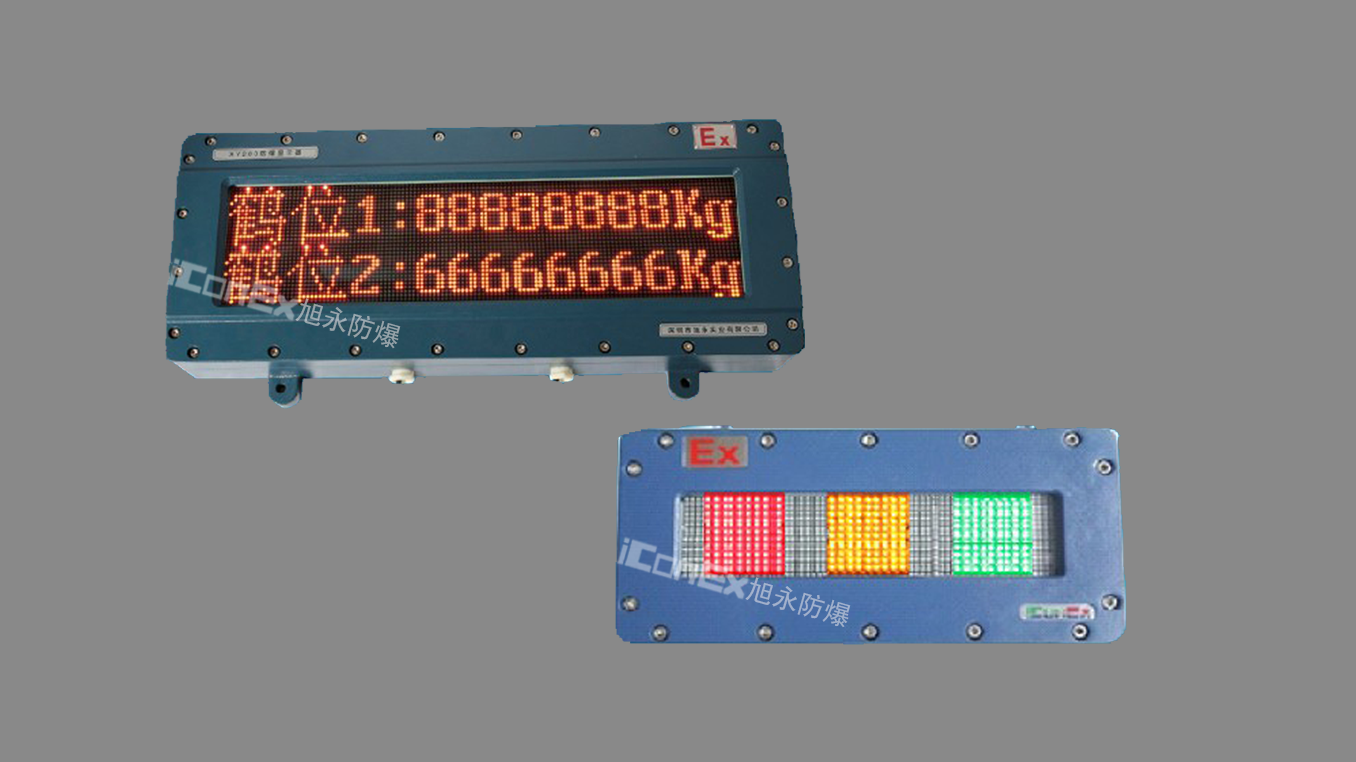

XY200 LED Display
XY200 LED Display
Benefits：
Explosion-proof design,for Zone 1, 21.
High-brightness LED, visible in indoor/outdoor.
Support single line,double line display.
Support Modbus RTU protocol, text character display.
Customizable continuous transmission protocol dedicated to weighbridge display.
Can be used for floor scale display,vehicle loading system display and traffic signals.
Explosion-proof design,for Zone 1, 21.
High-brightness LED, visible in indoor/outdoor.
Support single line,double line display.
Support Modbus RTU protocol, text character display.
Customizable continuous transmission protocol dedicated to weighbridge display.
Can be used for floor scale display,vehicle loading system display and traffic signals.
Technical parameters
Model | XY200_3A | XY200_3B |
Screen size | 304*76 | 608*152mm |
Display lines | Single line | Double lines |
Characters/line | 8 characters or 4 Chinese characters | 16 characters or 8 Chinese characters |
Viewing distance | 20~30m | |
Communication interface | RS485/RJ45 port | |
Communication protocol | Modbus RTU/Custom text/Modbus TCP | |
Display mode | Synchronous/Asynchronous | |
Power supply | 220VAC/24VDC±10% | |
Electrical interface | 2*M20x1.5H | |
Power consumption | 4W | 15W |
Ambient temp. | NT: 0～50℃(LT: -20～60℃ / WT: -40～60℃ customized) | |
Storage temp. | -40~70℃ | |
Ambient humidity | 5%~95%RH (no condensation) | |
Installation method | Wall-mounted | |
Protection level | IP66 | |
Explosion-proof mark | Ex db IIB T6 Gb; Ex tb IIIC T80°C Db; | |
Certificate | CNEX | |
