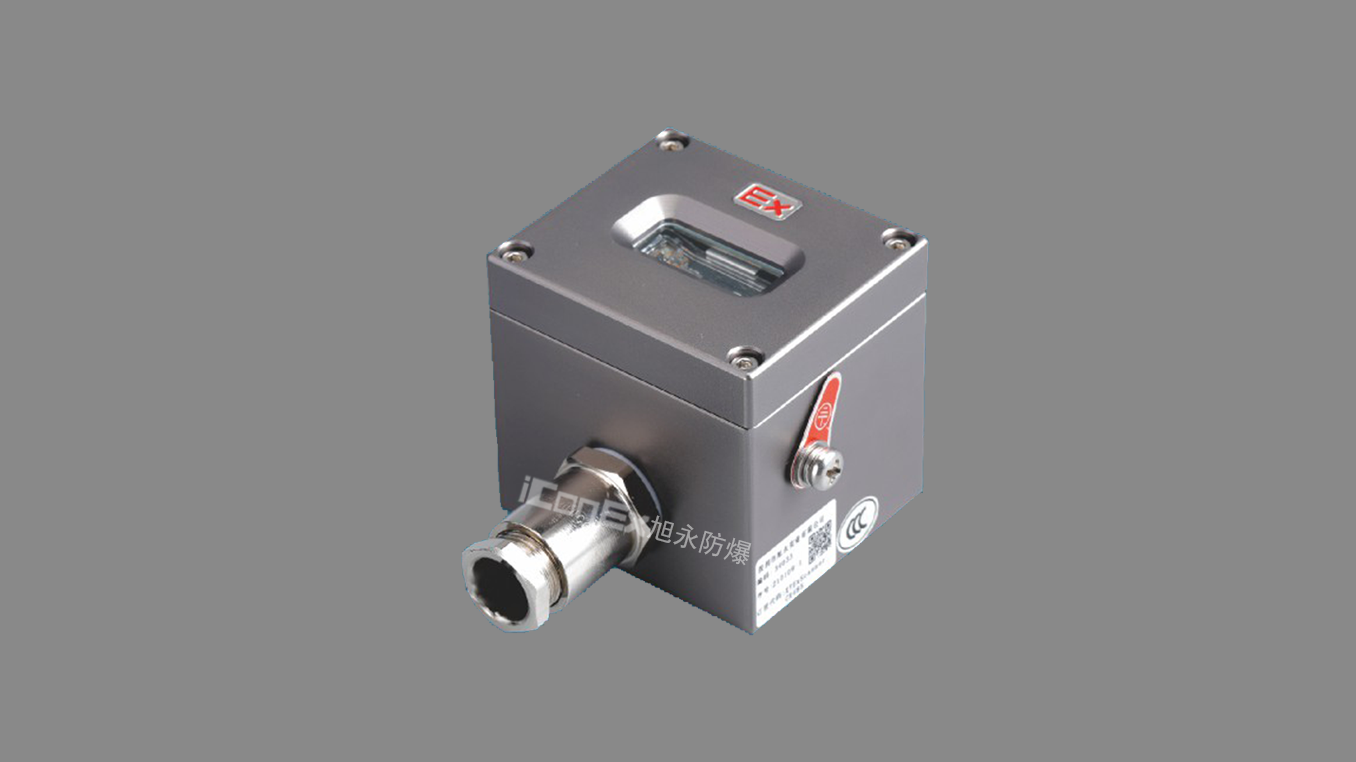

XYExScanner fixed barcode scanner
XYExScanner fixed barcode scanner
Explosion-proof and fixed-mounted designed for Zone 1, 21.
High-speed omnidirectional scanning for 1D/2D barcodes, postal codes, and OCR.
Can read multiple barcodes simultaneously.
Design to prevent electrical surge interference.
Visual/audible alerts,bright LED indicators and buzzer feedback.
Device robust design in IP66 standard.
Technical parameters
Model | XYExScanner_C | XYExScanner_M1 | XYExScanner_M2 | XYExScanner_M3 |
Communication interface | RS232/RS485/USB | RJ45（Ethernet） | ||
Communication protocol | ASCII/Modbus RTU | Modbus TCP/Ethernet IP/Profinet/MELSEC/FTP/HTTP | ||
Scanning method | 2D image scanning (960*640 pixels) | 2D image scanning (1408*1024) | 2D image scanning (1408*1024) | |
Barcode type | Code39, Code93, Code128. ITF14, ITF25. CodeBar, EAN, UPCA, UPCE, QR, DMI | |||
Recognition distance | 100mm | 40~120mm | 300~800mm | 300~2000mm |
Reading ability | 1D and 2D | 1D and 2D (Can read multiple barcodes at once） | ||
Scanning speed | 60 frames/s. | 84 frames/s. | 90 frames/s. | |
Trigger method | Automatic/Instructions/IO | Instructions/IO | ||
Digital I/O | 4 bidirectional I/O, non isolated(Default:2 input, 2 output) | |||
Ambient temp. | - 40 ~ 60℃ | |||
Storage temp. | - 40 ~ 70℃ | |||
Ambient humidity | 0-95% relative humidity, no condensation at 50 ℃ | |||
Rated voltage | 5V DC±10% | 24V DC±10% | ||
Rated current | Max. 500mA | Max. 1000mA | ||
Electrical interface | 1*M20x1.5H | 2*M20x1.5H | ||
Signal transmission | USB/RS232≤10M ； | ≤50M | ||
Cable length | 3m | 3m（customizable：3~50m） | ||
Protection level | IP66 | |||
Ex-proof mark | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db; | |||
Certificate | CNEX | |||
